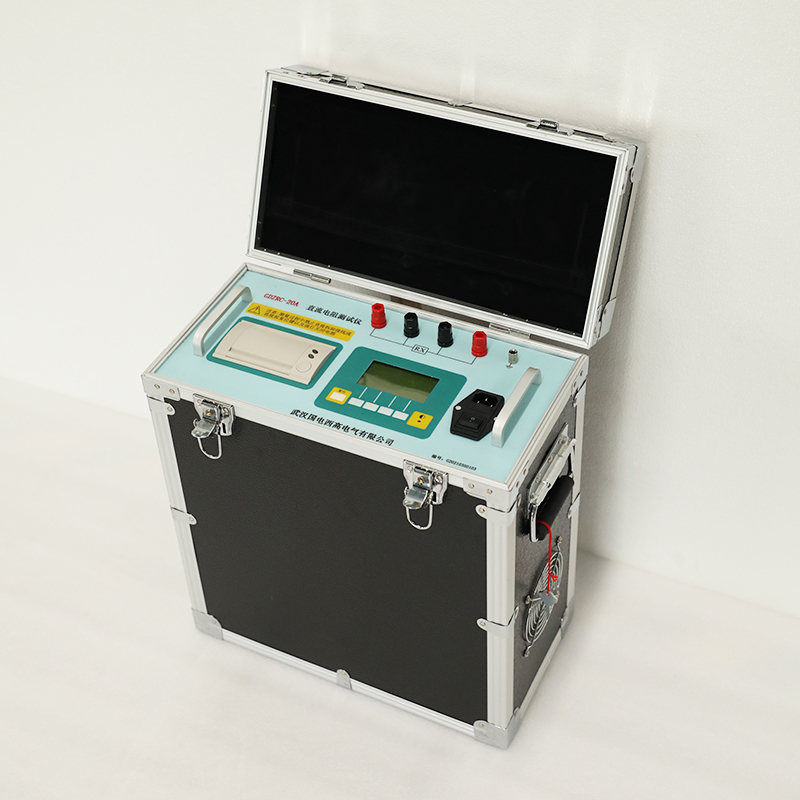

GDZRC Series DC Winding Resistance Tester (GDZRC-10A)
Features
● Four leads measurement to ensure measuring accuracy.
● Program-controlled current source to increase measuring speed.
● Auto discharge and discharge indication function, to ensure safety and availability.

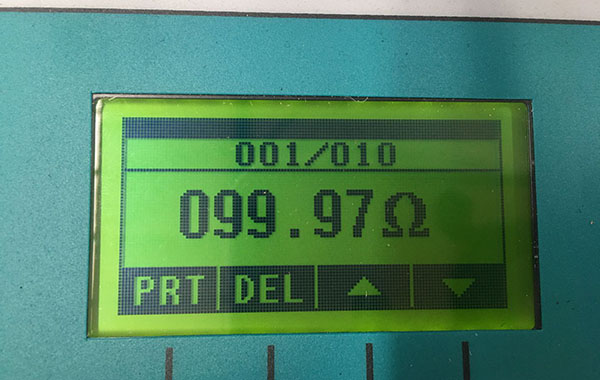

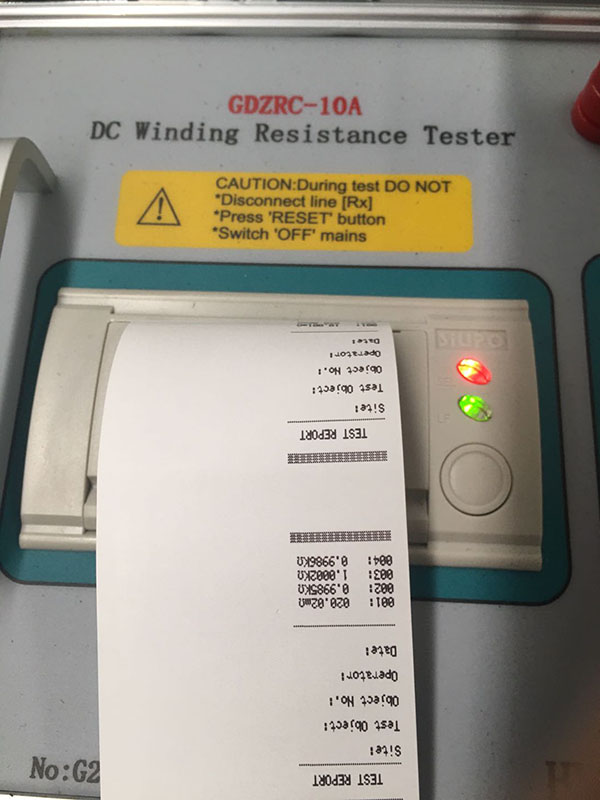

● LCD screen and Built-in Printer.
Specifications
| Items | Specifications | Remark | |
| Testing current | 1mA ?10mA ?1A ?5A ?10A | ? | |
| Measurement range | 1mA: 10mA: 1A: 5A: 10A: |
1Ω-20KΩ 1Ω-2KΩ 10mΩ-20Ω 1mΩ-4Ω 1mΩ-2Ω |
? |
| GDZRC-20A DC Winding Resistance Tester | |||
| Testing current | 1A ?5A ?10A ?20A | ||
| Measurement range | 1A: 10mΩ～20Ω 5A: 1mΩ～4Ω 10A: 1mΩ～2Ω 20A: 1mΩ～1Ω |
||
| Weight | About 10kg | ||
| GDZRC series DC Winding Resistance Tester GDZRC-40A | |||
| Testing current | 2.5A ?5A ?10A ?20A??40A | ||
| Measurement range | 2.5A:10mΩ-8Ω 5A: 1mΩ-4Ω 10A: 1mΩ-2Ω 20A: 1mΩ-1Ω 40A:1mΩ-500mΩ |
||
| Weight | About 32kg | ||
| Accuracy | ±0.2% of full range ±2digit | ? | |
| Data storage | 255pcs | ? | |
| Display | LCD screen | 4 1/2?digit | |
| Max.resolution | 0.1μΩ | ? | |
| Power supply | AC 220V±22V, 50Hz±2 Hz | Fuse 5A | |
| Max.power consumption | 300W | Testing current is 10A | |
| Working environment | Temperature:?0-40℃? Relative humidity:?≤80% |
? | |
| Dimension | 200*400*280mm | ? | |
| Weight | About 6kg | ? | |
Packing List
| Test Lead? | 1 set |
| Power cord? | 1pc |
| Print paper? | 2rolls |
| User’s Guide?? | 1 piece |

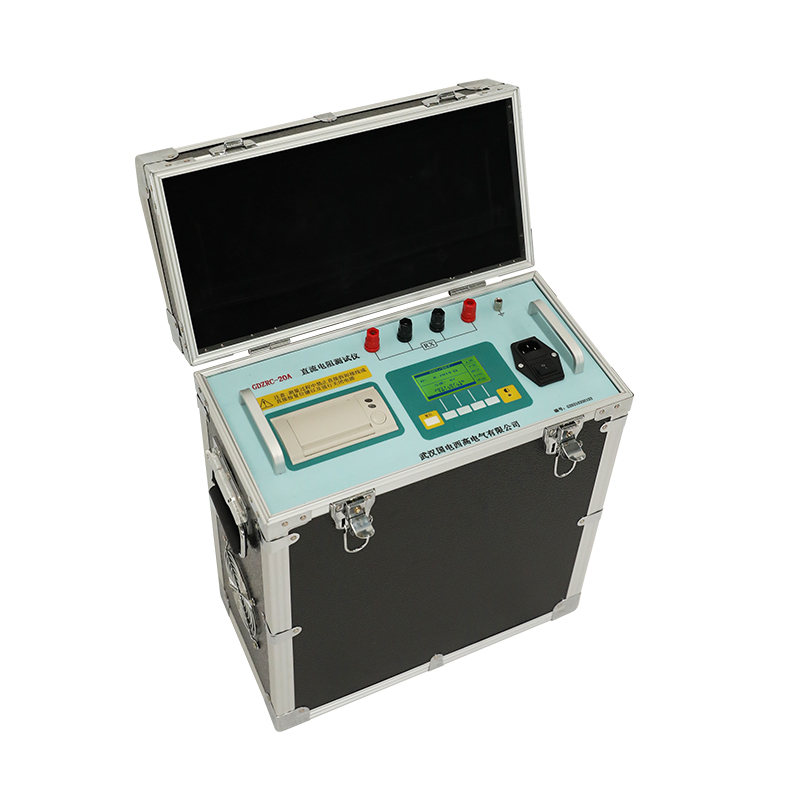

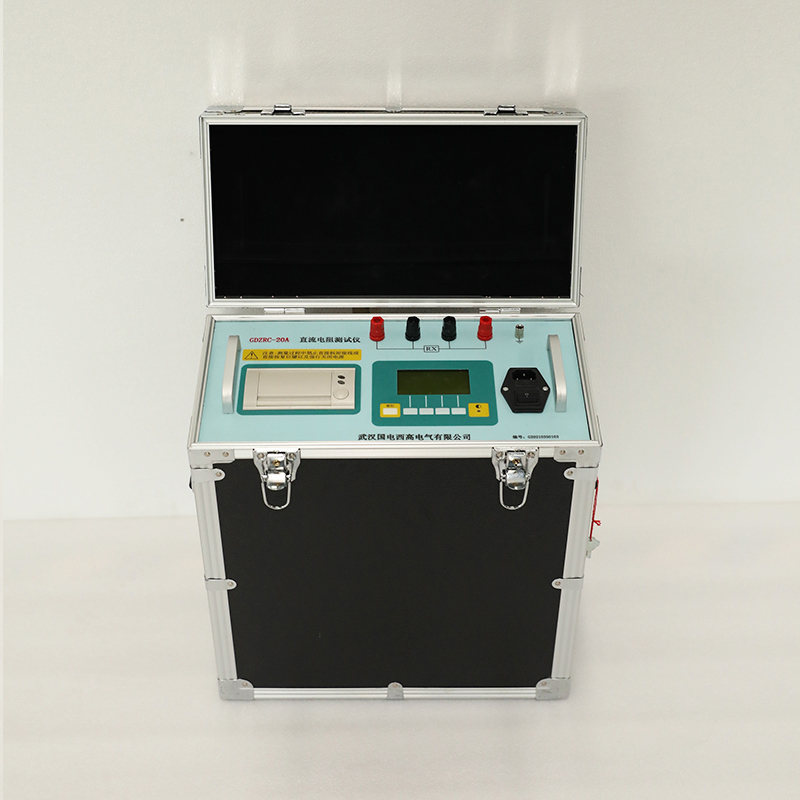

GDZRC-20A DC Winding Resistance Tester

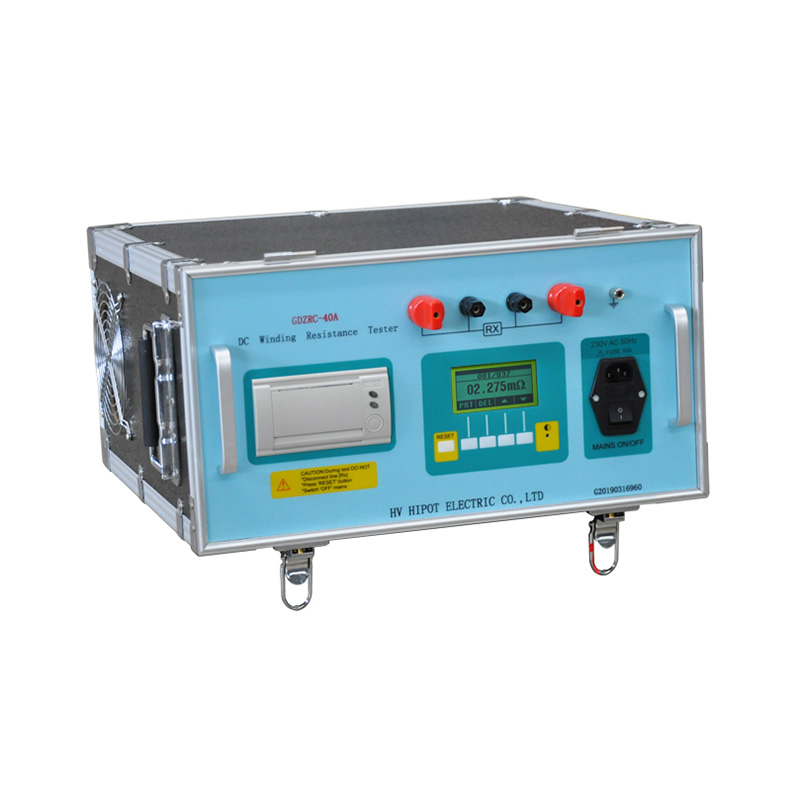

GDZRC series DC Winding Resistance Tester GDZRC-40A
